CADViewer Online Demo Resources

Upload your own drawings and test some typical CADViewer use-cases

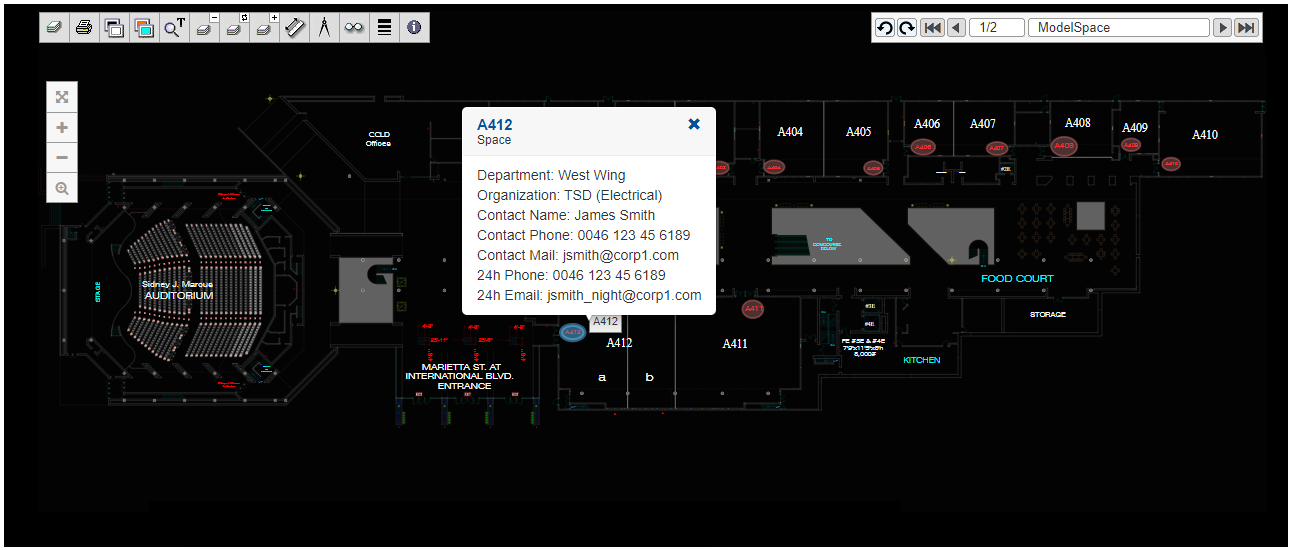

Connecting to IBM Tririga to display user content at locations

Connecting to IBM Tririga to display user content at locations

Using CADViewer API and back-end Java Connectors to make queries against an IBM DB2 running IBM Tririga to populate hotspots.

Go to Online Demo

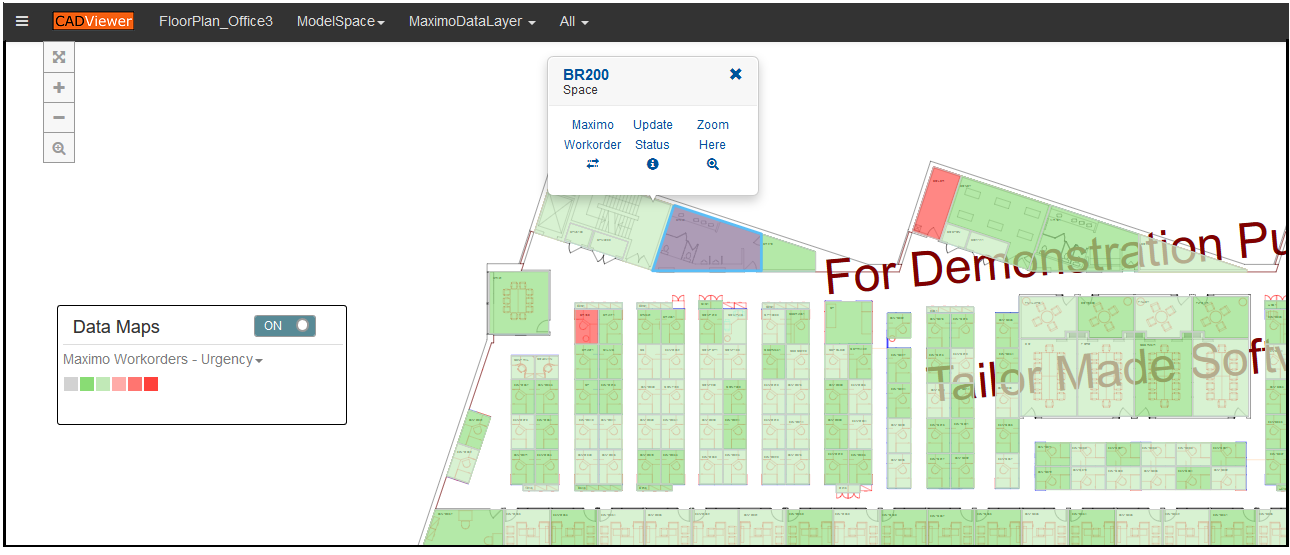

Retrieving and displaying Workorders using Rest calls

Retrieving and displaying Workorders using Rest calls

Using CADViewer for retrieving and displaying Workorder locations from IBM Maximo using Rest API calls. The API is also used to enable general queries against the Workorder Database for dynamic highlight.

Go to Online Demo

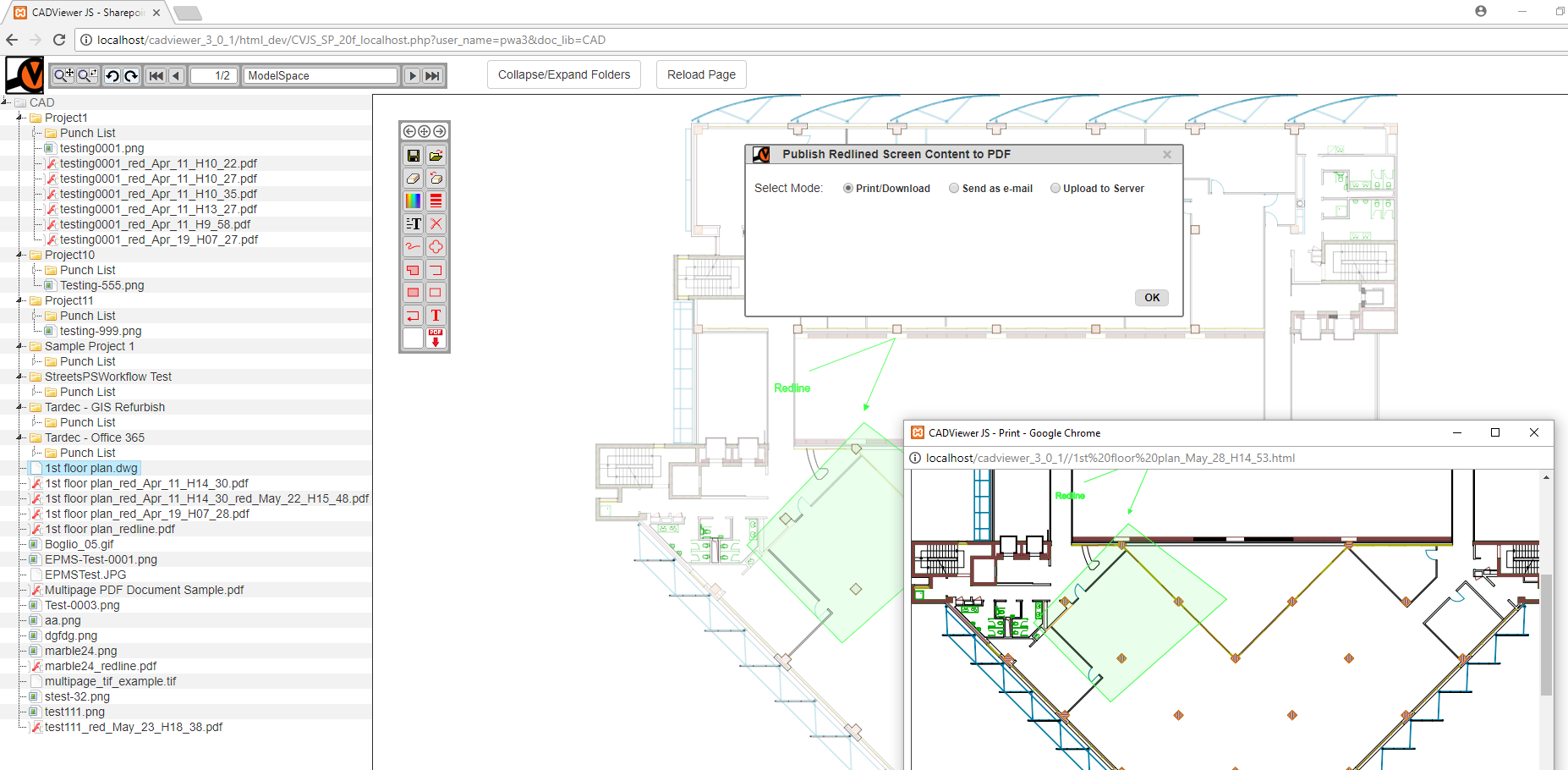

CADViewer Office 365 | SharePoint Integration

CADViewer Office 365 | SharePoint Integration

CADViewer SharePoint/MicroSoft 365 Integration: Seamless CAD access point to Sharepoint server. Builds navigational file tree over Sharepoint server folder content. Among others, allows sharing of redlined content via e-mail. Implements download and upload of redlines as well as translation to PDF of redline overlays.

Go to Online Demo

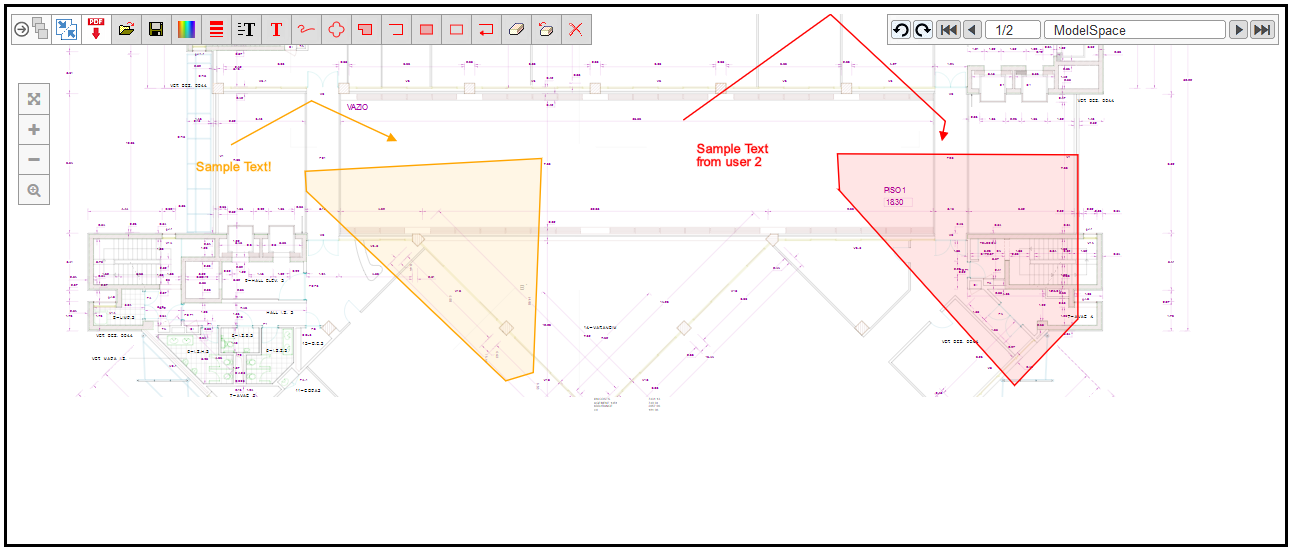

CADViewer Redlines Overlay

CADViewer Redlines Overlay

Multiple overlay load of redlines are enabled. Links with AutoXchange for own server on-the-fly conversion control of CAD drawings and is set up for interactive modals for file-loading and redlines.

Go to Online Demo

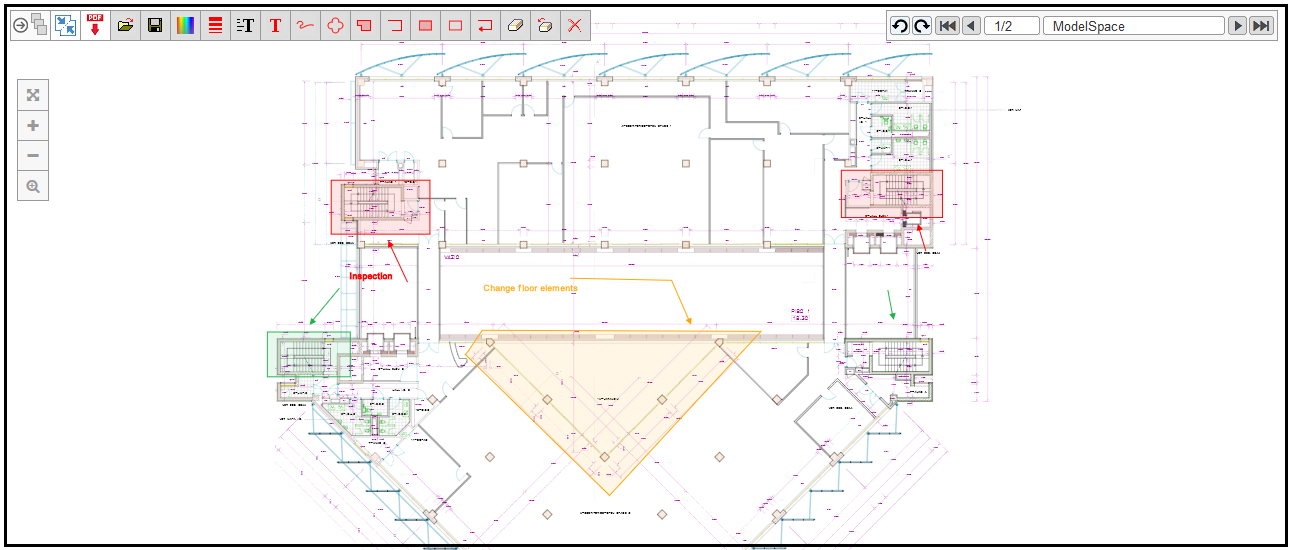

CADViewer Redlines API

CADViewer Redlines API

Sample for embedding CADViewer JS in an encapsulating application. Redline handling of features such as locked users, hidden users, etc. are all Javascript API controlled. File and redline load/save are all done through API calls

Go to Online Demo
